Ground station GCS-19
Ultra-rugged
Ground Station

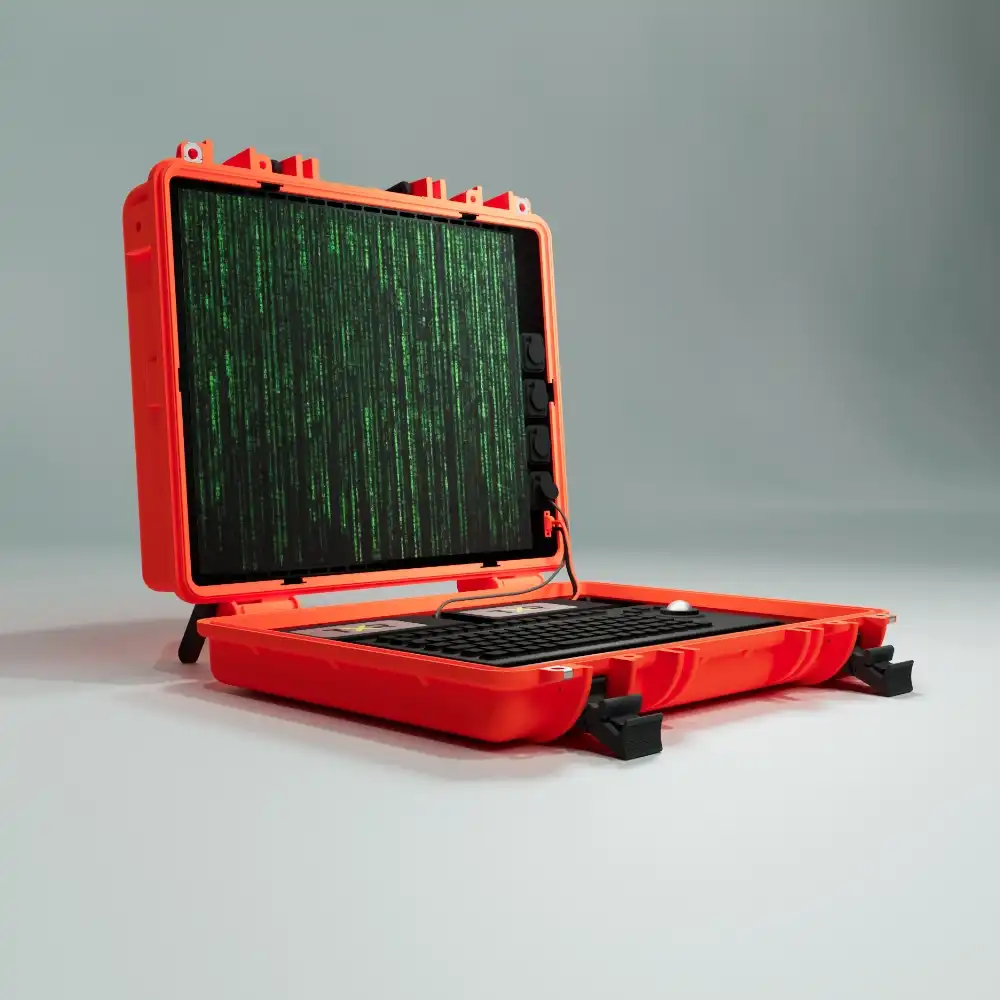

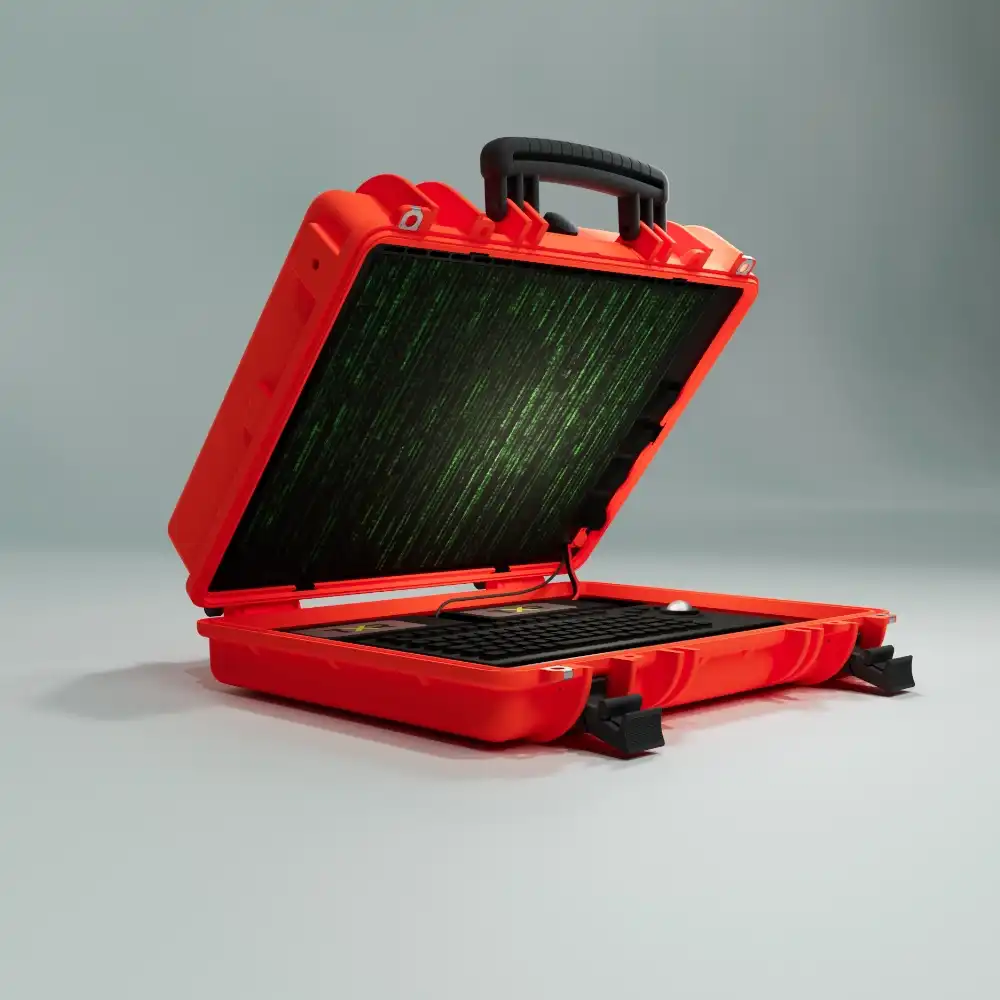

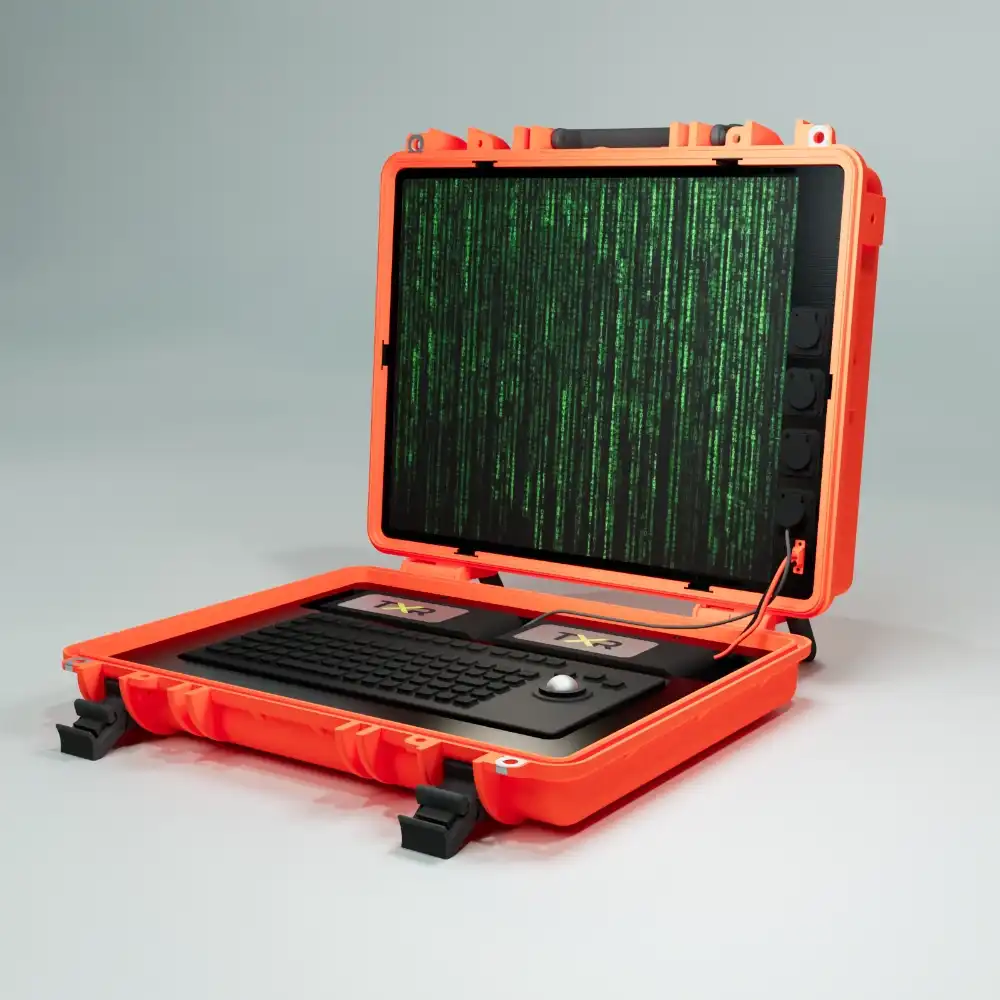

The GCS1-19K is built to perform in the most challenging environments, from underground and on water to the harshest field conditions. This ultra-rugged ground station ensures reliable support for unmanned aerial systems (UAS) operations and data processing. Featuring substantial computing power, it is capable of handling even the most demanding tasks, keeping operations running smoothly no matter the environment.
With an industrial-grade mainboard and a high-quality touchscreen display, the GCS1-19K is designed for optimal performance in any condition. Its display remains fully readable even in direct sunlight, ensuring clear visibility during critical operations. Whether in extreme weather or remote locations, this ground station provides dependable support for seamless UAS missions.
Features
The GCS1-19K ground station combines powerful computing capabilities with rugged design, ensuring reliable support for UAS operations in the most challenging environments. Featuring an Intel i7 11th Gen processor, 32GB of RAM, and a 1TB SSD, it handles demanding data processing tasks with ease. Its sunlight-readable 19” touchscreen and durable, shockproof case make it ideal for field operations, offering seamless connectivity and exceptional performance under harsh conditions.
Rugged durability
High performance
19'' Sunlight-Readable
High Performance and Storage
The GCS1-19K is built for demanding UAS operations, powered by an Intel i7 11th Gen processor (1165G7), with 4 cores and 8 threads capable of up to 4.7GHz. Coupled with 32GB DDR4 memory and a 1TB NVMe SSD, this ground station offers exceptional processing power and fast, reliable storage to handle intensive data processing tasks, even in remote environments.
Rugged and Reliable Design

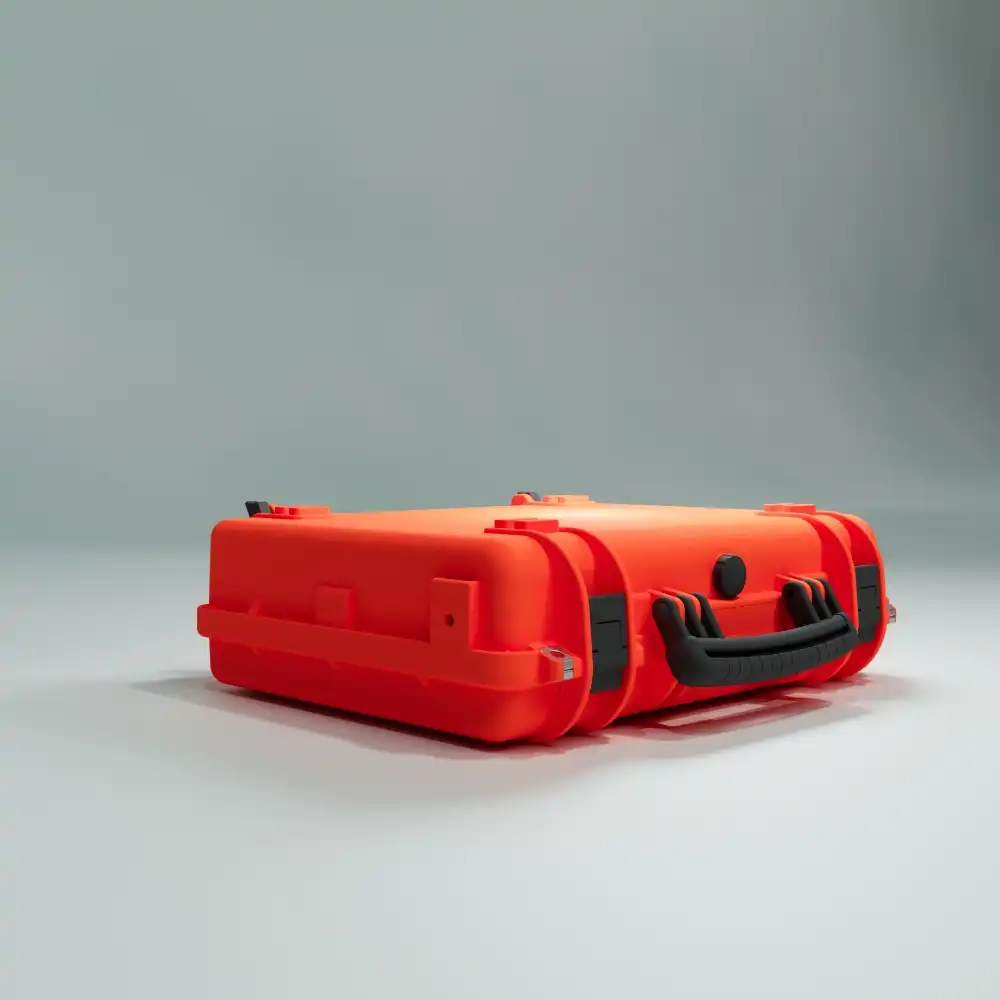

Designed for harsh environments, the GCS1-19K features a shockproof and waterproof copolymer polypropylene case and a 7075 aluminum frame, ensuring durability and protection in extreme conditions. The IP67-rated keyboard and waterproof trackball allow reliable operation, even in wet and challenging field environments, making it ideal for outdoor use.
Exceptional Display and User Interface
The GCS1-19K is equipped with a 19” Advantech industrial touchscreen featuring 1200 nits brightness, ensuring direct sunlight readability. Its resistive touch screen provides accurate input in all conditions, while the intuitive interface allows for smooth control and monitoring of UAS operations, even under harsh lighting and weather conditions.
Comprehensive Connectivity Options
Offering both wired and wireless connectivity, the GCS1-19K ensures fast and stable communication in the field. It features Intel Wi-Fi 6, Bluetooth 5.2, and 2.5Gbit Ethernet, allowing seamless data transfer and remote control. The ground station also includes multiple USB ports, HDMI output, and additional power inputs to support various devices and ensure continuous operation during missions.
Technical specifications
Basic specifications
| Instrument designation | GCS1-19K-TOUCH-i7-32GB-1TB |
| Mainboard | Intel NUC Industrial platform, i7 11th gen processor (1165G7), 4/8 Cores/Threads, 4.7GHz, 12MB |
| Memory | 32GB (2x16GB) DDR4-3200 SODIMM |
| Storage | 1TB NVMe SSD Drive (Samsung 980 PRO) |
| Display | Advantech industrial 19" SXGA, LED 1200nt, direct sunlight readable, resistive touch screen |

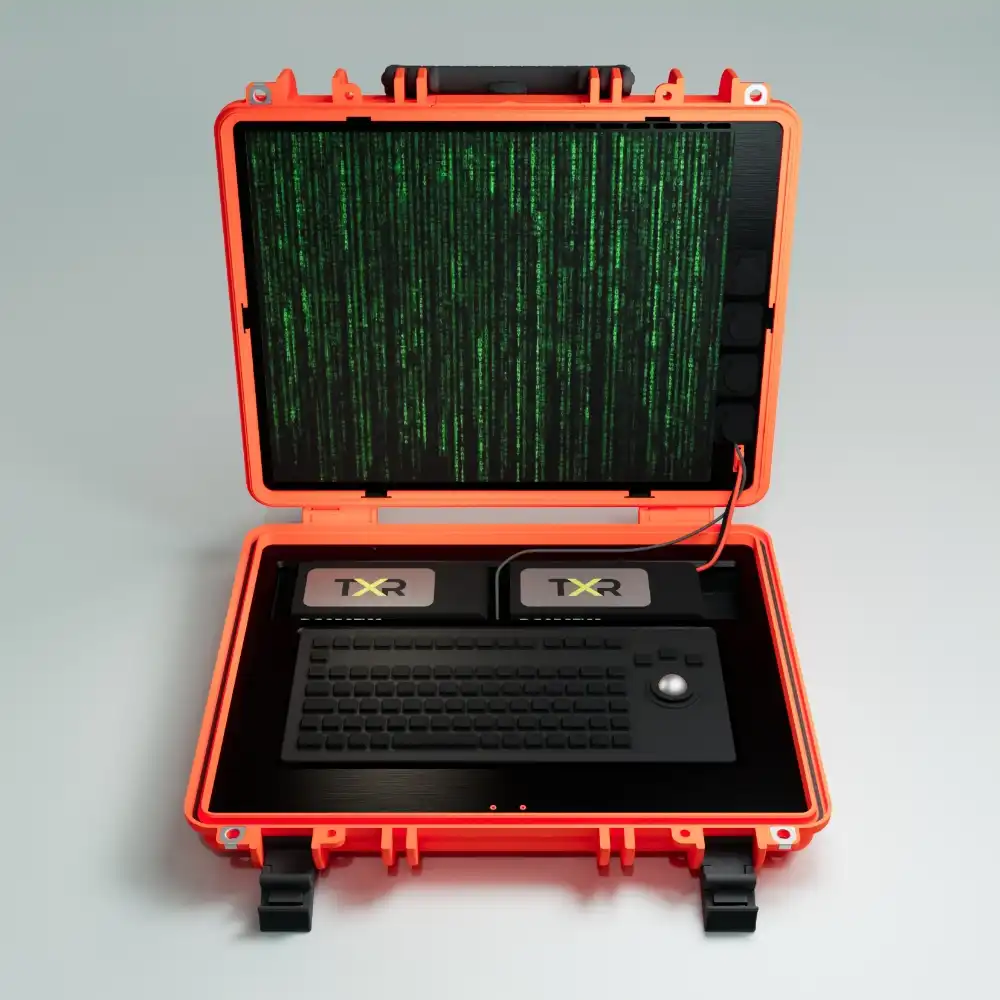

| Keyboard / trackbal | NSi IEC60945 Marine silicone rubber 92 key keyboard, IP67, 25mm waterproof trackbal |
| LAN | Intel i255-LM Gigabit Ehthernet controller with 2.5Gbit/s support |
| Wireless | Intel Wi-Fi 6 AX201 M.2 card, 802.11ax, 2x2 Wi-Fi + Bluetooth v 5.2, up to 2.4Gbps |
| External connectors | 2x USB 2.0, 2x USB 3.2, HDMI 2.0b, RJ-45 Ethernet 2.5Gbit, 2x DC power in, 2x rSMA antenna |
| Frame construction | 7075 Aluminium fully machined frame construction |
| Environment | Operating temp: 0-40° C, humidity 5 - 95% @40° C, non-condensing, storage:-20 - 60° C |
| Power | 2x internal bay for 4S/10Ah Lipo, Dual connector for external 12-36V DC source, included 90W supply |
| Case | Shock proof, copolymer polypropylene, waterproof case with shoulder strap |
Transport size and weight
| Length | 445 mm |
| Width | 345 mm |
| Depth | 125 mm |
| Weight | 7.5 kg |
